BlockingQueue and Semaphore in Java: Solving the Producer-Consumer Problem

Introduction: BlockingQueue and Semaphore in Java

The Producer-Consumer problem is a classic synchronization scenario in multithreaded programming. In Java, two advanced techniques for solving this problem include using BlockingQueue and Semaphore. Both approaches offer elegant solutions, but their internals, performance implications, and use cases differ significantly.

While our previous guide covered synchronized blocks, real-world systems often require more robust and scalable approaches.

Why synchronized may not be enough?

• In high-traffic systems (e.g., thread pools handling 10K+ tasks/second), the overhead of synchronized blocks becomes a bottleneck. Example: A financial trading platform processing market data feeds.
• Naive synchronisation can lead to thread starvation, where some threads wait indefinitely. Example: A priority task queue where high-value transactions must jump ahead.
• Modern architectures (Kafka, RabbitMQ) extend this pattern across networks. Example: Microservices communicating via message queues.

In this tutorial, we’ll take a deep dive into these two techniques, walk through working examples, and compare their advantages and disadvantages.

Approach 1: Producer-Consumer with BlockingQueue

In Java, the BlockingQueue interface from the java.util.concurrent package provides a high-level, thread-safe abstraction for coordinating data exchange between multiple threads. It is especially useful in producer-consumer scenarios where we need to safely share a bounded buffer between producer and consumer threads.

Unlike traditional collections, a BlockingQueue includes built-in blocking behaviour, removing the need for manual synchronisation:

• A producer thread calling put() will block if the queue is full, until space becomes available.
• A consumer thread calling take() will block if the queue is empty, until an element is available.

This behaviour prevents common multithreading issues such as race conditions, busy-waiting, and manual synchronisation errors.

Java Producer-Consumer with ArrayBlockingQueue

Let’s explore an example using ArrayBlockingQueue, a fixed-size thread-safe queue implementation:

import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.BlockingQueue;
/**
 * Java BlockingQueue Example: Producer-Consumer Pattern Implementation
 *
 * This tutorial demonstrates thread-safe communication between producer and consumer threads
 * using Java's BlockingQueue from java.util.concurrent package.
 *
 * Key Features:
 * - Thread-safe queue operations
 * - Automatic blocking when queue is full/empty
 * - Efficient producer-consumer workflow
 * - Graceful thread interruption handling
 */
public class BlockingQueueExample {

    // Optimal queue capacity for demonstration
    private static final int QUEUE_CAPACITY = 5;

    // Control thread execution with volatile flag
    private static volatile boolean running = true;

    public static void main(String[] args) {
        // Create a thread-safe blocking queue with fixed capacity
        BlockingQueue<Integer> queue = new ArrayBlockingQueue<>(QUEUE_CAPACITY);

        // Producer Thread: Generates sequential numbers
        Thread producer = new Thread(() -> {
            int value = 0;
            try {
                while (running && !Thread.currentThread().isInterrupted()) {
                    // Put value into queue (blocks if queue is full)
                    queue.put(value);
                    System.out.println("[Producer] Created item: " + value);
                    value++;

                    // Simulate production time
                    Thread.sleep(500);
                }
            } catch (InterruptedException e) {
                System.out.println("Producer thread interrupted");
                Thread.currentThread().interrupt();
            } finally {
                System.out.println("Producer thread terminating");
            }
        }, "Producer-Thread");

        // Consumer Thread: Processes items from queue
        Thread consumer = new Thread(() -> {
            try {
                while (running && !Thread.currentThread().isInterrupted()) {
                    // Take value from queue (blocks if queue is empty)
                    int data = queue.take();
                    System.out.println("[Consumer] Processed item: " + data);

                    // Simulate consumption time (longer than production)
                    Thread.sleep(1000);
                }
            } catch (InterruptedException e) {
                System.out.println("Consumer thread interrupted");
                Thread.currentThread().interrupt();
            } finally {
                System.out.println("Consumer thread terminating");
            }
        }, "Consumer-Thread");

        // Start both threads
        producer.start();
        consumer.start();

        // Add shutdown hook for clean termination
        Runtime.getRuntime().addShutdownHook(new Thread(() -> {
            running = false;
            producer.interrupt();
            consumer.interrupt();
            System.out.println("\nShutting down producer-consumer example...");
        }));
    }
}

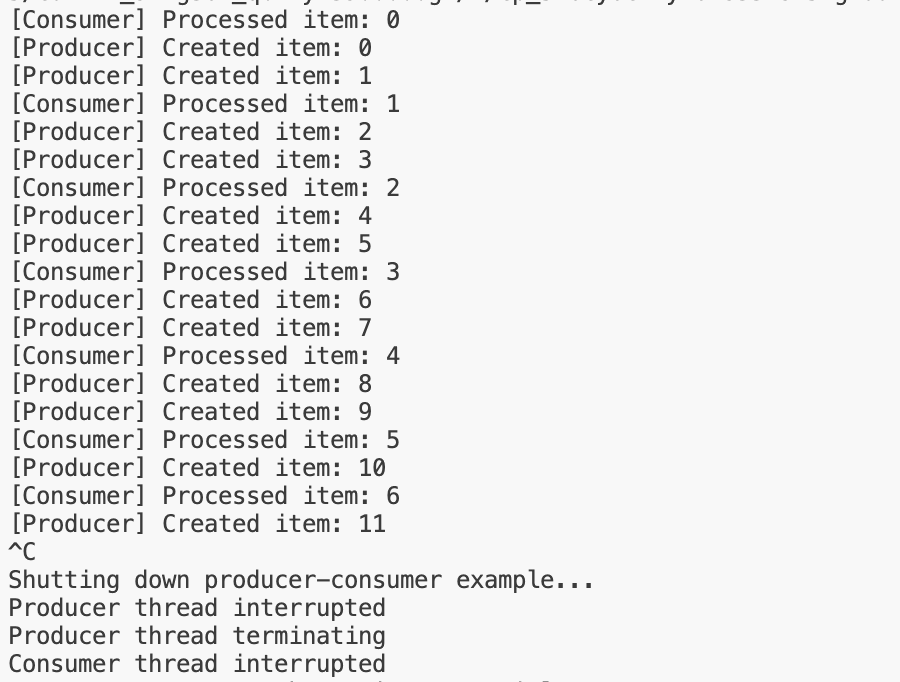

The following behavior can be observed when running the code:

How BlockingQueue Solves the Producer-Consumer Problem

The producer-consumer pattern has a simple concept but tricky implementation:

• One thread creates data (producer)
• Another thread uses that data (consumer)
• They need to share data safely without stepping on each other’s toes

The Problems BlockingQueue Fixes:

1. Different Speed Problem
   In real apps, producers and consumers work at different speeds. Here, the producer makes items faster (every 500ms) than the consumer can use them (every 1000ms). Without BlockingQueue:
   • The fast producer would overfill memory
   • The slow consumer would miss items
2. Thread Collision Problem
   Regular queues aren’t thread-safe. If both threads access the queue at the same time:
   • Data can get corrupted
   • Some items might disappear
   • The program might crash randomly

How BlockingQueue Works:

• When the queue is full
  If the producer tries to add an item when the queue is full:
  → The producer thread automatically pauses (blocks)
  → It wakes up only when space becomes available
  → No lost items, no crashes
• When the queue is empty
  If the consumer tries to take an item when empty:
  → The consumer thread automatically pauses
  → It wakes up when new items arrive
  → No busy waiting that wastes CPU
• Built-in Safety
  All operations are automatically synchronized:
  → No manual locks needed
  → No race conditions
  → No deadlocks from improper locking

Approach 2: Producer-Consumer with Semaphores

In Java, the Semaphore class from the java.util.concurrent package provides a flexible way to control access to shared resources using “permits“. While BlockingQueue abstracts away the low-level synchronisation, using Semaphores gives us full control over the coordination logic. For our producer-consumer problem.

We’ll use two semaphores:

• One to track empty slots (where producers can put items)
• One to track filled slots (where consumers can take items)

Key Differences from BlockingQueue:

1. More Control: Semaphores give us finer control over thread coordination
2. Manual Management: We need to handle the buffer synchronisation ourselves
3. Flexibility: Can implement more complex patterns beyond simple queues

Key Semaphores Used

Semaphore	Purpose	Initial Value
emptySlots	Counts available empty slots (for producer)	Size of buffer
filledSlots	Counts available filled slots (for consumer)	0
bufferLock	Ensures only one thread modifies the buffer	1

Java Producer-Consumer with Semaphores and Synchronized blocks

We’ll use Semaphore for this example:

import java.util.LinkedList;
import java.util.Queue;
import java.util.concurrent.Semaphore;

/**
 * Producer-Consumer Solution Using Semaphores and Synchronized Blocks
 *
 * Demonstrates thread coordination using semaphores instead of BlockingQueue.
 *
 * Key Features:
 * - Uses counting semaphores for empty/full control
 * - Mutual exclusion on shared buffer via synchronized block (acts as a mutex)
 * - Same thread safety guarantees as BlockingQueue
 * - More flexible for complex scenarios
 */
public class SemaphoresExample {

    private static final int BUFFER_SIZE = 5;
    private static volatile boolean running = true;

    // Shared buffer and its lock
    private static final Queue<Integer> buffer = new LinkedList<>();
    private static final Object bufferLock = new Object();

    // Semaphores to track empty and full slots
    private static final Semaphore emptySlots = new Semaphore(BUFFER_SIZE);
    private static final Semaphore filledSlots = new Semaphore(0);

    public static void main(String[] args) {
        // Producer Thread
        Thread producer = new Thread(() -> {
            int value = 0;
            try {
                while (running && !Thread.currentThread().isInterrupted()) {
                    emptySlots.acquire(); // Wait for empty slot

                    synchronized (bufferLock) {
                        buffer.add(value);
                        System.out.println("[" + Thread.currentThread().getName() + "] Created item: " + value);
                        value++;
                    }

                    filledSlots.release(); // Signal new item available
                    Thread.sleep(500);
                }
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
            } finally {
                System.out.println("Producer thread terminating");
            }
        }, "Producer-Thread");

        // Consumer Thread
        Thread consumer = new Thread(() -> {
            try {
                while (running && !Thread.currentThread().isInterrupted()) {
                    filledSlots.acquire(); // Wait for available item

                    int data;
                    synchronized (bufferLock) {
                        data = buffer.remove();
                    }

                    System.out.println("[Consumer] Processed item: " + data);
                    emptySlots.release(); // Signal slot freed up
                    Thread.sleep(1000);
                }
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
            } finally {
                System.out.println("Consumer thread terminating");
            }
        }, "Consumer-Thread");

        producer.start();
        consumer.start();

        // Shutdown hook
        Runtime.getRuntime().addShutdownHook(new Thread(() -> {
            running = false;
            producer.interrupt();
            consumer.interrupt();
            System.out.println("\nShutting down semaphore example...");
        }));
    }
}

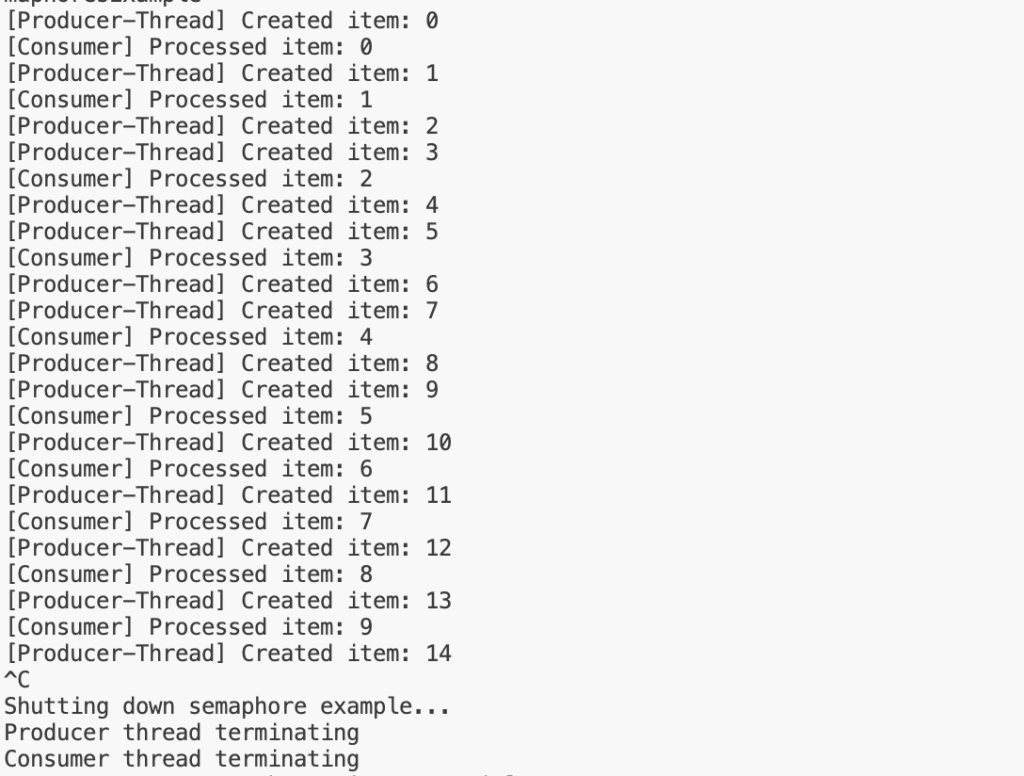

When the code is executed, we observe the following:

How Semaphores Solve the Producer-Consumer Problem

1. Empty Slots Semaphore
   • Starts with count = buffer size (5)
   • A producer must “acquire” before adding an item
   • Consumer “releases” after taking an item
2. Filled Slots Semaphore
   • Starts with count = 0
   • Consumer must “acquire” before taking an item
   • Producer “releases” after adding an item

Step-by-Step Flow:

Producer Side:

1. Waits for an empty slot (emptySlots.acquire())
2. Locks the buffer and adds the item
3. Signals a new item is available (filledSlots.release())

Consumer Side:

1. Waits for the available item (filledSlots.acquire())
2. Locks buffer and removes the item
3. Signals empty slot available (emptySlots.release())

BlockingQueue and Semaphore: Key Differences

Feature	BlockingQueue	Semaphore Approach
Ease of Use	Simple, built-in API	More complex, needs manual control
Synchronization	Automatic, thread-safe	Manual (using synchronized + semaphores)
Buffer Management	Built-in (no manual lock or queue needed)	Custom queue + semaphores + locking needed
Flexibility	Limited to queue semantics	Very flexible; can model other patterns
Performance	Highly optimized internally	Slightly slower due to manual coordination
Learning Curve	Low (ideal for beginners)	Moderate (needs understanding of concurrency concepts)

Common BlockingQueue and Semaphore Interview Questions

Here are some frequently asked interview questions and concepts related to both:

1. How does BlockingQueue handle thread synchronisation internally?

• It uses a ReentrantLock to provide mutual exclusion.
• Two Condition variables are used: notFull (for producers) and notEmpty (for consumers).
• put() waits on notFull if the queue is full.
• take() waits on notEmpty if the queue is empty.
• Producers signal notEmpty after adding an element.
• Consumers signal notFull after removing an element.

2. What happens if multiple producers and consumers use the same BlockingQueue?

• The queue remains thread-safe due to locks and conditions.
• Multiple producers block when the queue is full.
• Multiple consumers block when the queue is empty.
• Execution order depends on JVM thread scheduling.

3. Can BlockingQueue cause a deadlock? If yes, how?

• Normally, no, because it uses proper ReentrantLock and Condition waiting mechanisms.
• Deadlocks can occur if threads are not careful, e.g., holding other locks while calling blocking methods on the queue.

4. What’s the difference between put()/take() and offer()/poll()?

Method	Behavior
put()	Blocks if the queue is full
take()	Blocks if the queue is empty
offer()	Returns false immediately if the queue is full (non-blocking)
poll()	Returns null immediately if the queue is empty (non-blocking)

5. How would you implement a BlockingQueue from scratch?

• Use a Queue (e.g., LinkedList).
• Use a ReentrantLock to provide mutual exclusion.
• Use two Condition variables: notFull and notEmpty.
• put() waits on notFull, adds the item, then signals notEmpty.
• take() waits on notEmpty, removes the item, then signals notFull.

6. Can a Semaphore cause a deadlock? How?

Yes, if threads acquire semaphores in an inconsistent order.

Example:

• Thread 1: acquire semaphore A, then semaphore B.
• Thread 2: acquire semaphore B, then semaphore A.

If both threads hold one semaphore and wait for the other, a deadlock occurs.

7. How would you implement a producer-consumer problem using Semaphore?

• Use two counting semaphores:
  • emptySlots (initialised to buffer size)
  • filledSlots (initialised to 0)
• Producer: acquire emptySlots, add item to buffer, release filledSlots.
• Consumer: acquire filledSlots, remove item from buffer, release emptySlots.

8. Can you use a single Semaphore instead of two for producer-consumer?

No, because:

• A single semaphore cannot track both empty and filled slots.
• You need two separate conditions (like in BlockingQueue).

Conclusion: BlockingQueue and Semaphore in Java

For most producer-consumer scenarios, BlockingQueue is the simplest, safest choice. Use Semaphores when we need fine-grained control over custom synchronisation.

In the next post, we’ll explore a more advanced version of the Producer-Consumer pattern using:

• ReentrantLock (an explicit and flexible version of synchronized)
• Condition (a more powerful version of wait()/notify())
